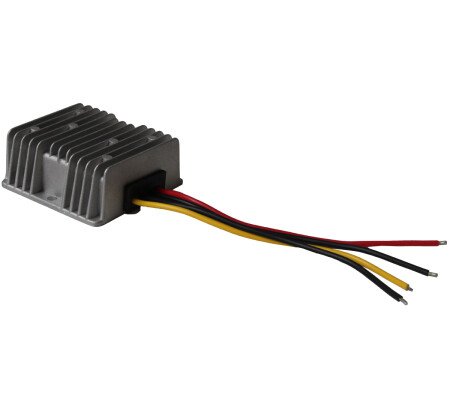

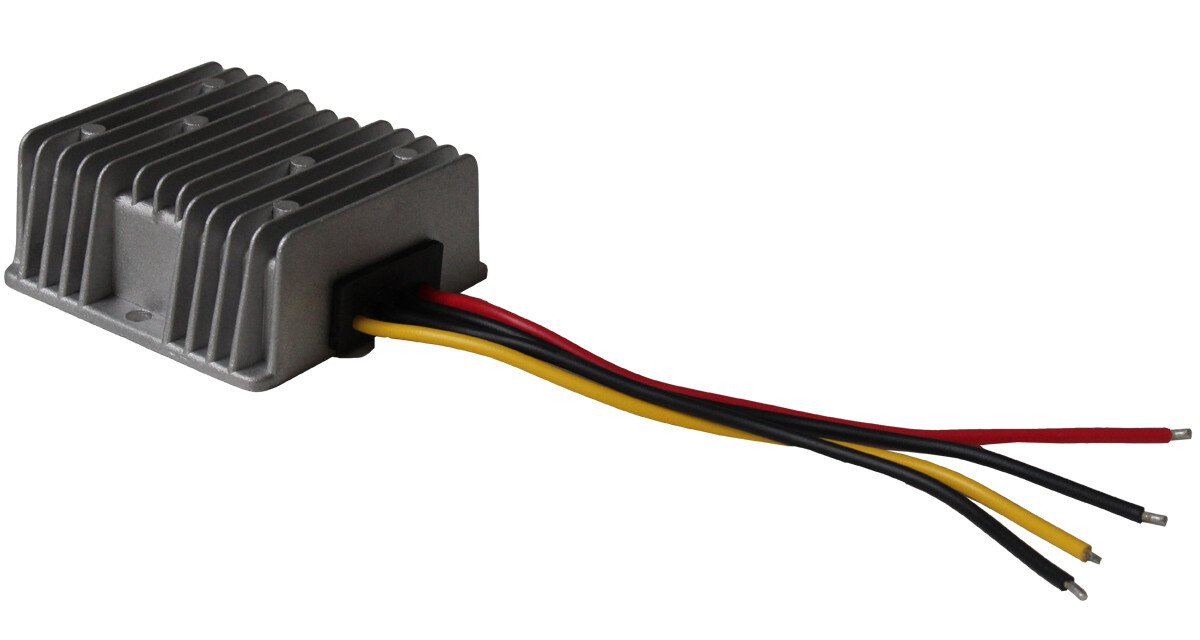

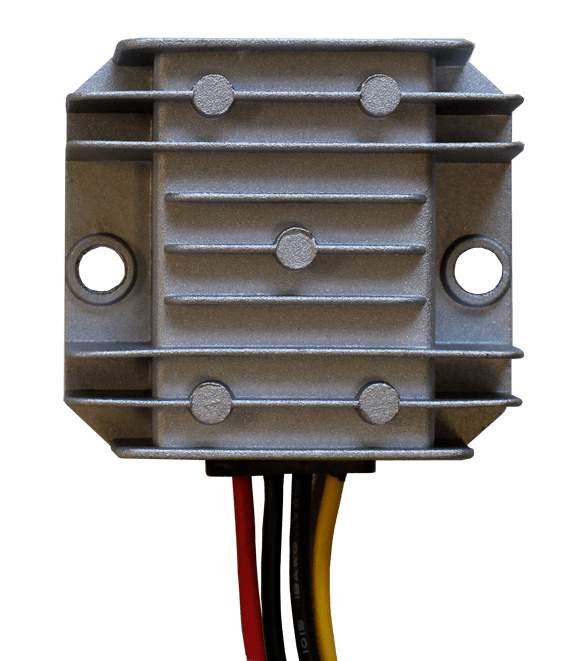

NVC-Series
The NVC series is a basic converter without further options, but it does exactly what it is supposed to do: convert the offered input voltage into a lower or higher fixed output voltage. The converters have a wide input voltage range. This alternating incoming voltage is converted into a tight output voltage of 12.0V, 13.8V or 24.0V (depending on the model). Available as a voltage converter and as a voltage stabilizer. Only suitable for connecting equipment, so not as a charging converter to charge a second battery.
The NVC converters are waterproof and shockproof (IP68).
Specifications
| Article no. | Input nom. | Output nom. | Power | Dimensions | Weight |
| NVC 2412-5 | 24Vdc | 12Vdc | 5Amp. | 57x64x22 mm | 125 gr. |
| NVC 2412-10 | 24Vdc | 12Vdc | 10Amp. | 74x74x31mm | 300 gr. |
| NVC 2412-20 | 24Vdc | 12Vdc | 20Amp. | 74x74x31 mm | 300 gr. |
| NVC 2412-30 | 24Vdc | 12Vdc | 30Amp. | 74x74x31 mm | 300 gr. |
| NVC 2413.8-50 | 24Vdc | 12Vdc | 50Amp. | 150x127x63 mm | 1750 gr. |
| NVC 2424-10 | 24Vdc | 24Vdc | 10Amp. | 74x74x31 mm | 300 gr. |
| NVC 1224-10 | 12Vdc | 24Vdc | 10Amp. | 74x74x31 mm | 300 gr. |
NVC 1224-20 | 12Vdc | 24Vdc | 20Amp. | 100x80x39 mm | 480 gr. |
