SP- and-SB-Series

Important: ending series. Ask for the current status.

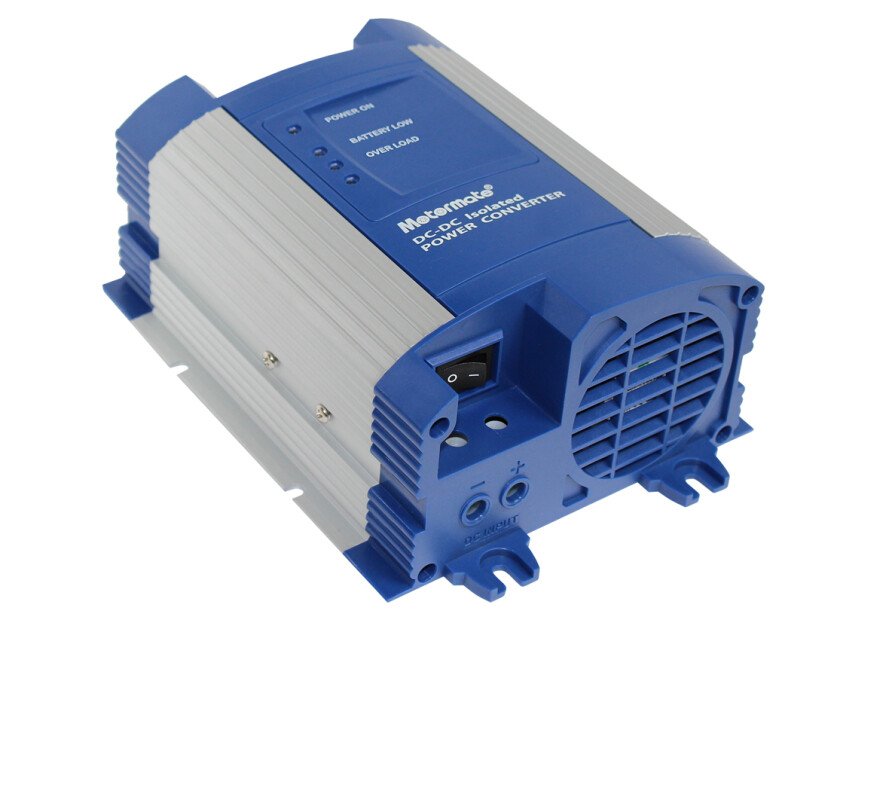

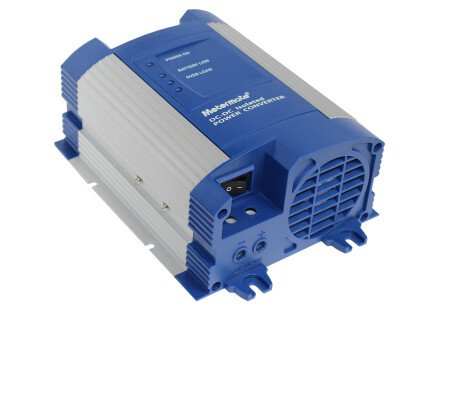

A complete line of high quality switch mode DC-DC converters. The SP, SB and PB series convert the input voltage into a stable, lower or higher output voltage. Due to the switch mode technology, an efficiency of 90% can be achieved. All models are equipped with a D+ connection, which makes it possible to switch the inverter on and off, for example via the ignition switch. The galvanic isolation ensures perfect isolation between input and output. In addition, several equal types can be connected in parallel to realize higher powers. Protected against short circuit on the output, overload, undervoltage and overheating. Equipped with a 5Vdc USB output. The input and output do have a screw connection. In this way you can determine the required cable length yourself. All types are adjusted to a normal supply voltage (13.8Vdc or 27.6Vdc), but this output voltage can optionally be adjusted to customer specifications.
